Faceplate F-Type IC630EG0WH
Faceplate F-Type IC630EG0WH

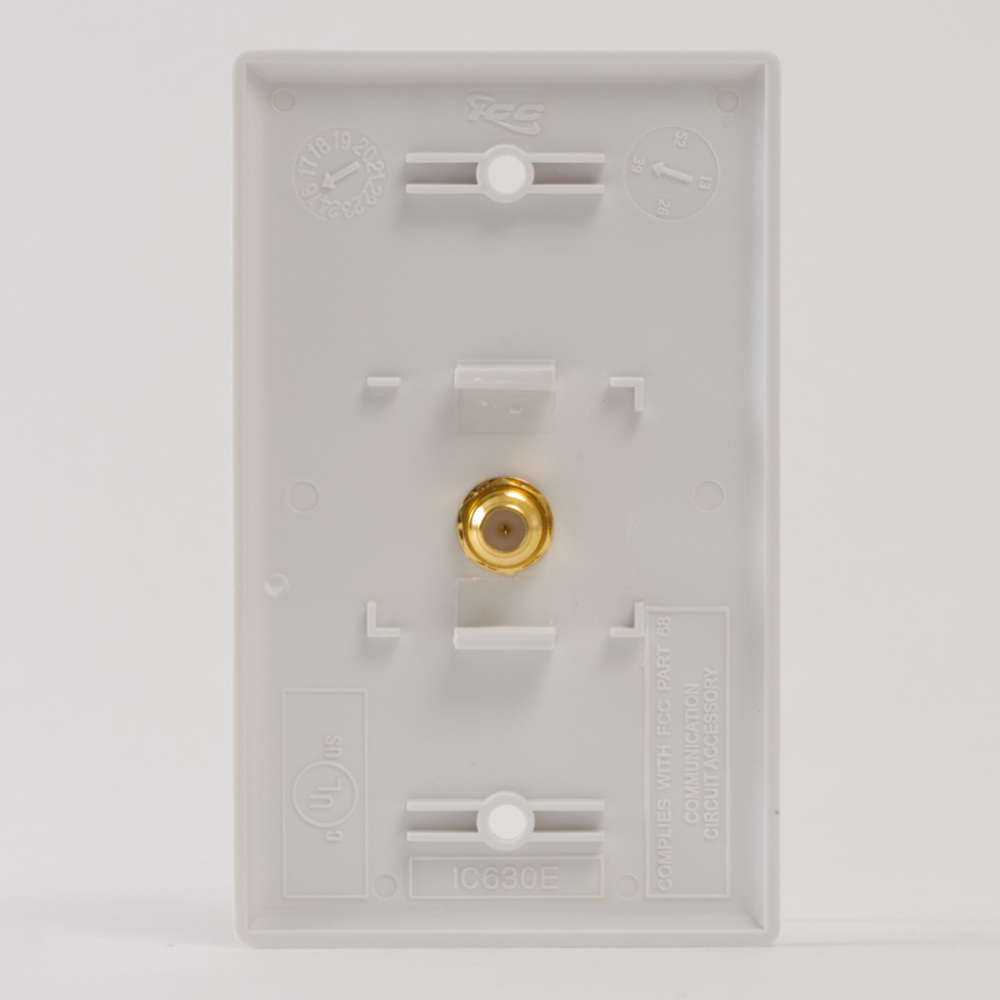

Faceplate F-Type Back IC630EG0WH

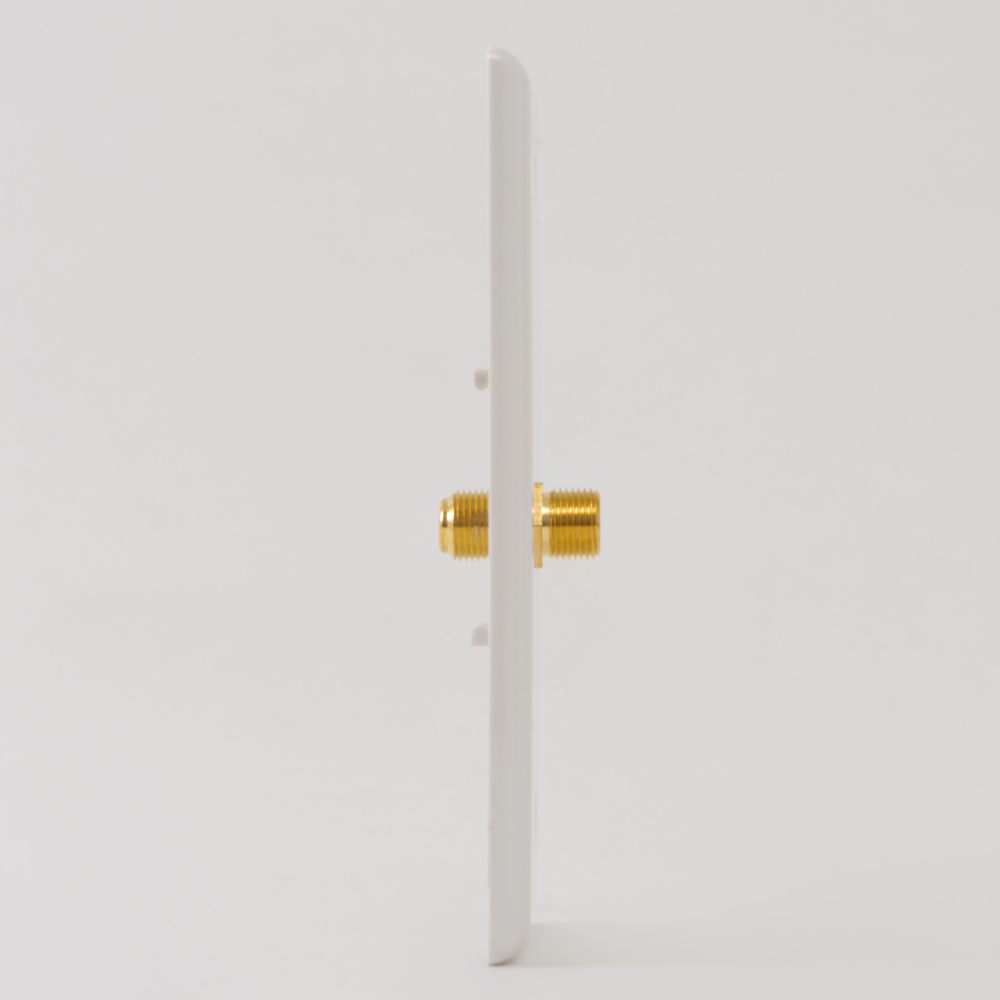

Faceplate F-Type Side IC630EG0WH

Faceplate with F-Type

Pre-configuration: F-Type
  • Faceplate IDC RJ-45 CAT5e Data F-type ICRDS0F5WH
  • Faceplate IDC RJ-11 6P6C RJ-45 Cat5e Data ICRDSV05WH
  • Faceplate IDC RJ-11 6P6C RJ-45 CAT5e Data F-Type ICRDSVF5WH
  • Oversized Faceplate IDC RJ-45 CAT5e Data F-type ICRDS0FLWH
  • Faceplate F-Type IC630EG0WH
  • Faceplate 6P6C Screw Terminals IC630E60WH
  • Faceplate 2 6P6C Screw Terminals IC630E66IV
  • Faceplate 6P6C Screw Terminals F-Type IC630E6GWH
  • Telephone Faceplate 6P6C IC630DB6WH
  • Telephone Faceplate Stainless Steel 6P6C IC630DA6SS

Country of Origin (subject to change): China

Warning SymbolCalifornia Prop 65 Warning


ICC’s Integrated Faceplates are equipped to support work area outlets. Our faceplates are fitted to install video connectivity. Ideal for installations such as conference rooms, computer labs, classrooms, and office cubicles. Designed with installation versatility these faceplates provide a professional appearance. This particular wall plate design is for an F-Type application.


  • Configured to fit standard single gang outlet box.
  • One piece design that requires no assembly.
  • Rugged and durable construction.
  • Gold plated F-Type connector for improved performance with superior quality.
  • Designed to use with both RG6 and RG59 coaxial.
  • Rear threaded F-Type connector for secure in-wall connections.
  • ANSI/TIA-568-C and UL 1863 compliant.



Material: ABS, UL 94V-0

F-Type Female-to-Female Connector:

Material: Bronze with 3-micron gold plating


Force: 80 grams

F-Type connector thread: 3/8-32 UNEF 2A


Return loss of -20 dB

Frequency Range DC -1.5 GHz

Contact Resistance: < 10 mohms

Insulation Resistance: >5000 mohms

Insertion Loss: < 0.3dB


Color XX: IV-Ivory, WH-White
