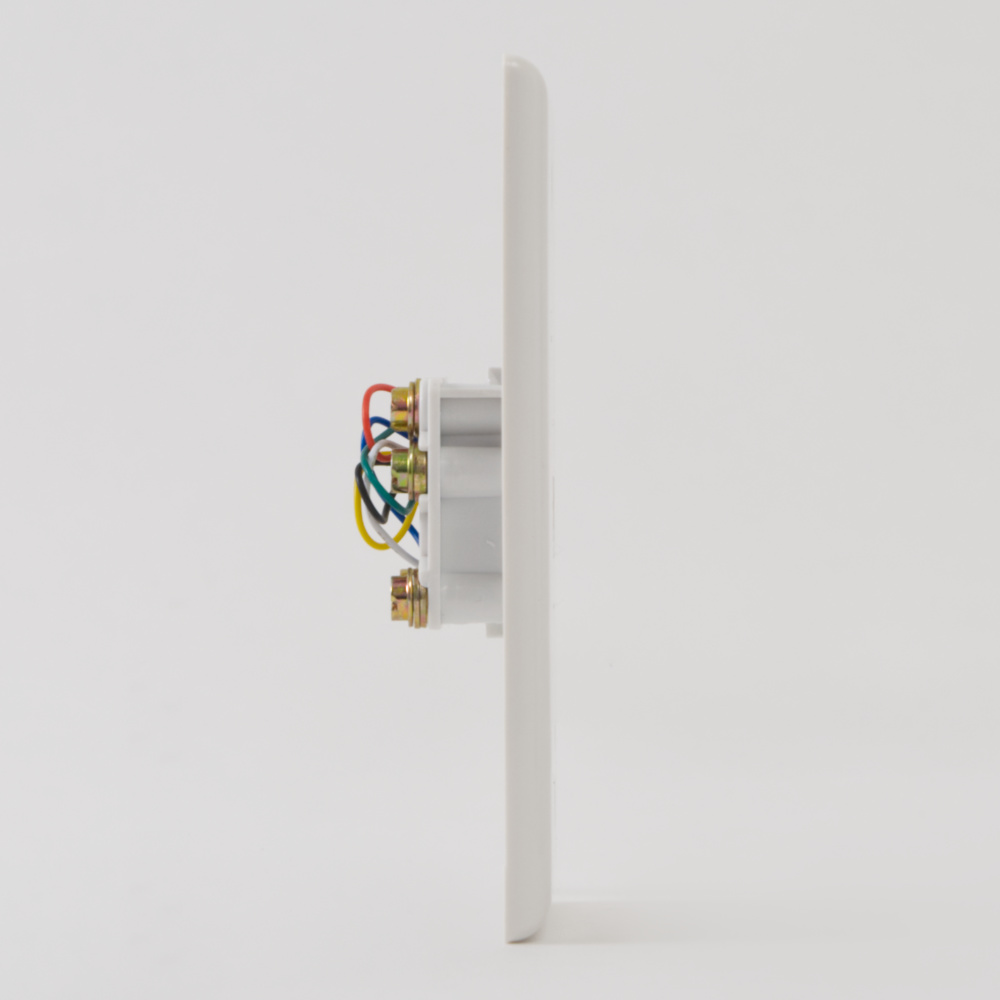

Faceplate 6P6C Screw Terminals Side IC630E60WH

Faceplate with 6P6C Screw Terminals

Pre-configuration: Screw Terminal - 6P6C
  • Faceplate IDC RJ-45 CAT5e Data F-type ICRDS0F5WH
  • Faceplate IDC RJ-11 6P6C RJ-45 Cat5e Data ICRDSV05WH
  • Faceplate IDC RJ-11 6P6C RJ-45 CAT5e Data F-Type ICRDSVF5WH
  • Faceplate IDC 2 RJ-45 CAT5e Data 2 F-Type ICRDS2F5WH
  • Oversized Faceplate IDC RJ-45 CAT5e Data F-type ICRDS0FLWH
  • Oversized Faceplate IDC RJ-11 6P6C RJ-45 CAT5e ICRDSV0LWH
  • Oversized Faceplate IDC RJ-11 CAT5e F-type ICRDSV0LWH
  • Faceplate F-Type IC630EG0WH
  • Faceplate 2 F-Type White IC630EGGWH
  • Faceplate 6P6C Screw Terminals IC630E60WH
  • Faceplate 2 6P6C Screw Terminals IC630E66WH
  • Faceplate 6P6C Screw Terminals F-Type IC630E6GWH
  • Telephone Faceplate 6P6C IC630DB6WH
  • Telephone Faceplate Stainless Steel 6P6C IC630DA6SS
  • Designer Faceplate 6P6C F-Type IC630S6GIV
Clear
UPC:

Country of Origin: China

Warning SymbolCalifornia Prop 65 Warning

Description

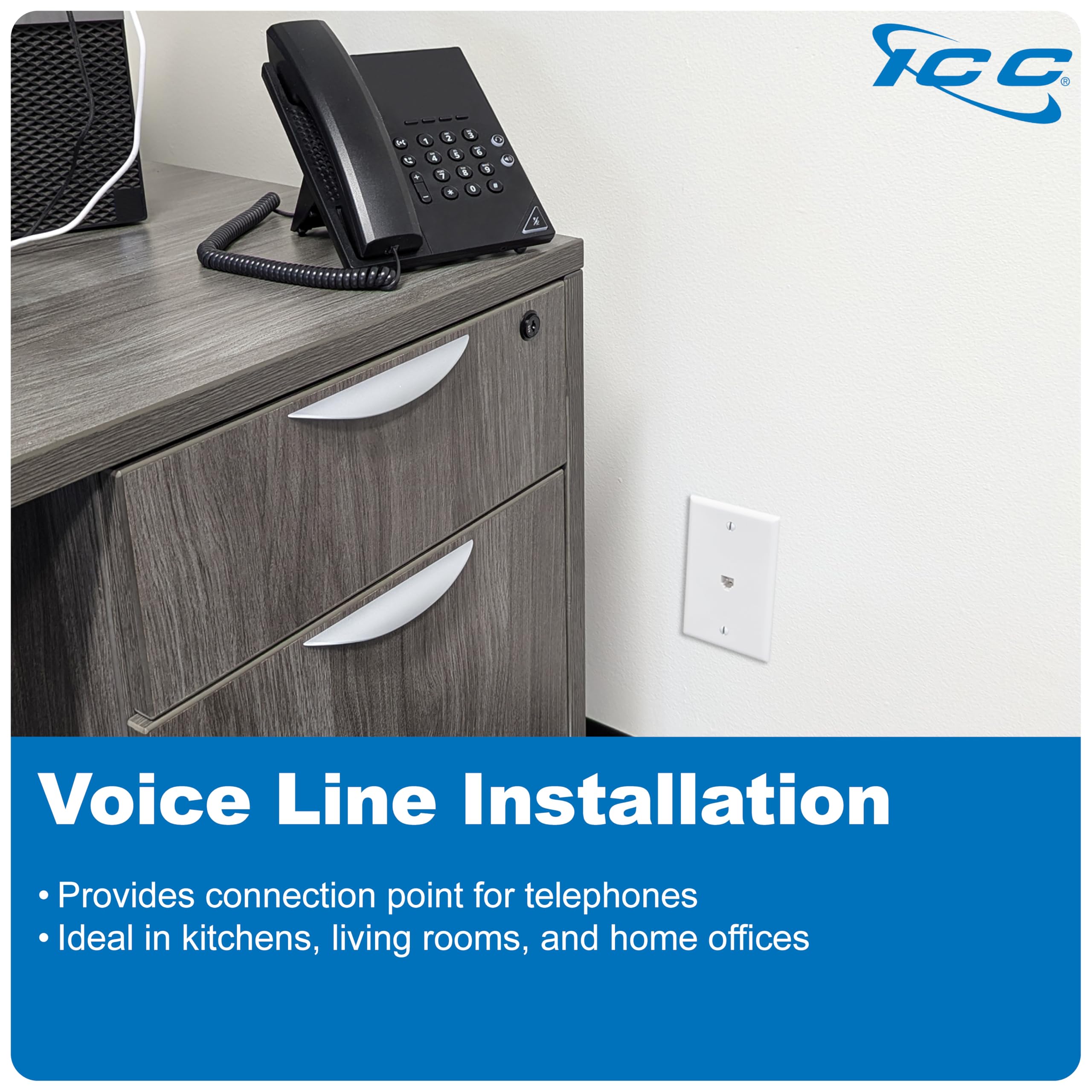

ICC’s Faceplates are equipped to support all work area outlets. Our faceplates are fitted to install voice connectivity. Ideal for installations such as conference rooms, computer labs, classrooms, and office cubicles. Designed with installation versatility these faceplates provide a professional appearance. This particular wall plate design comes in a single-gang and 6p6c application.

Features

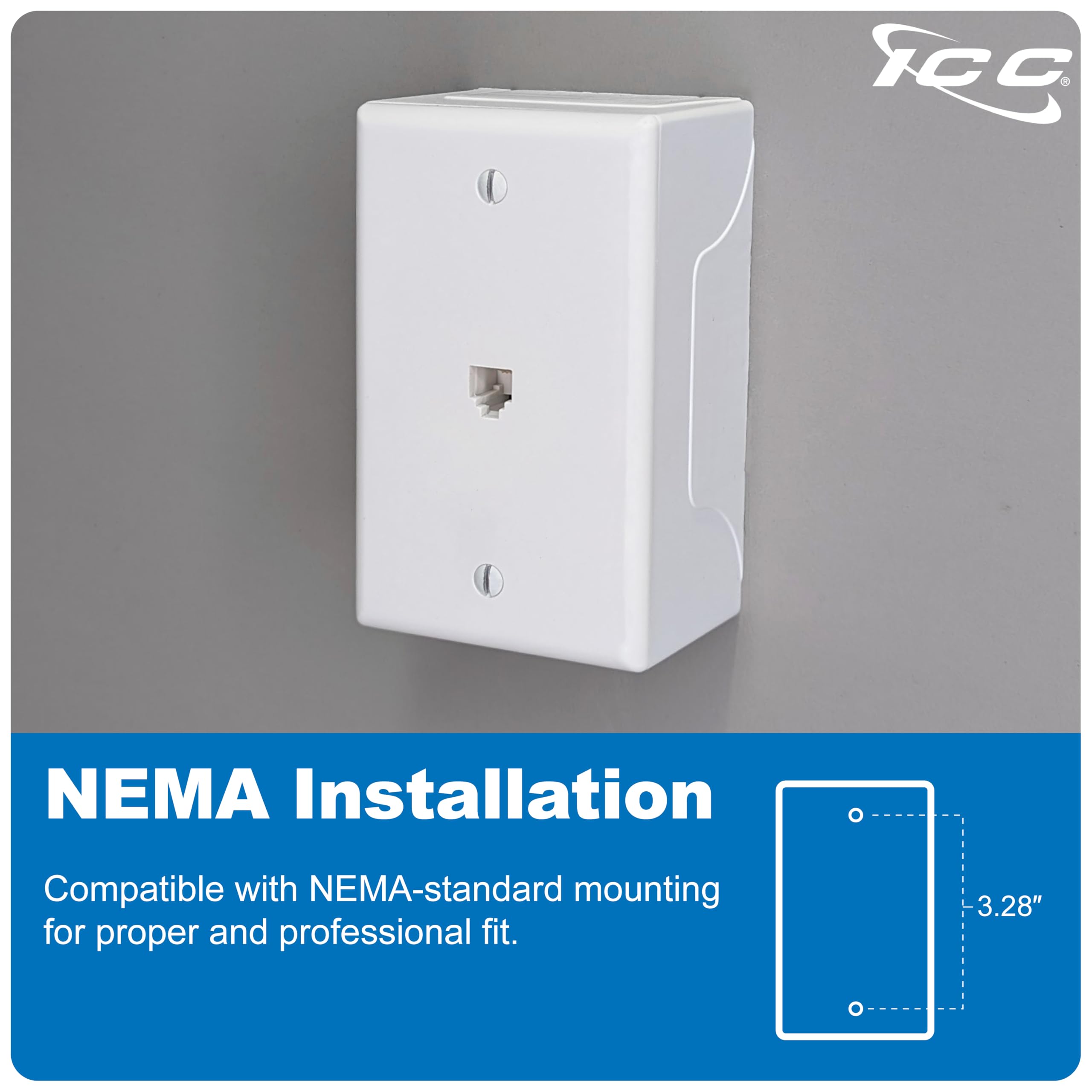

  • Configured to fit standard single gang outlet box.
  • One piece design that requires no assembly.
  • Designed for all voice connectivity to the work.

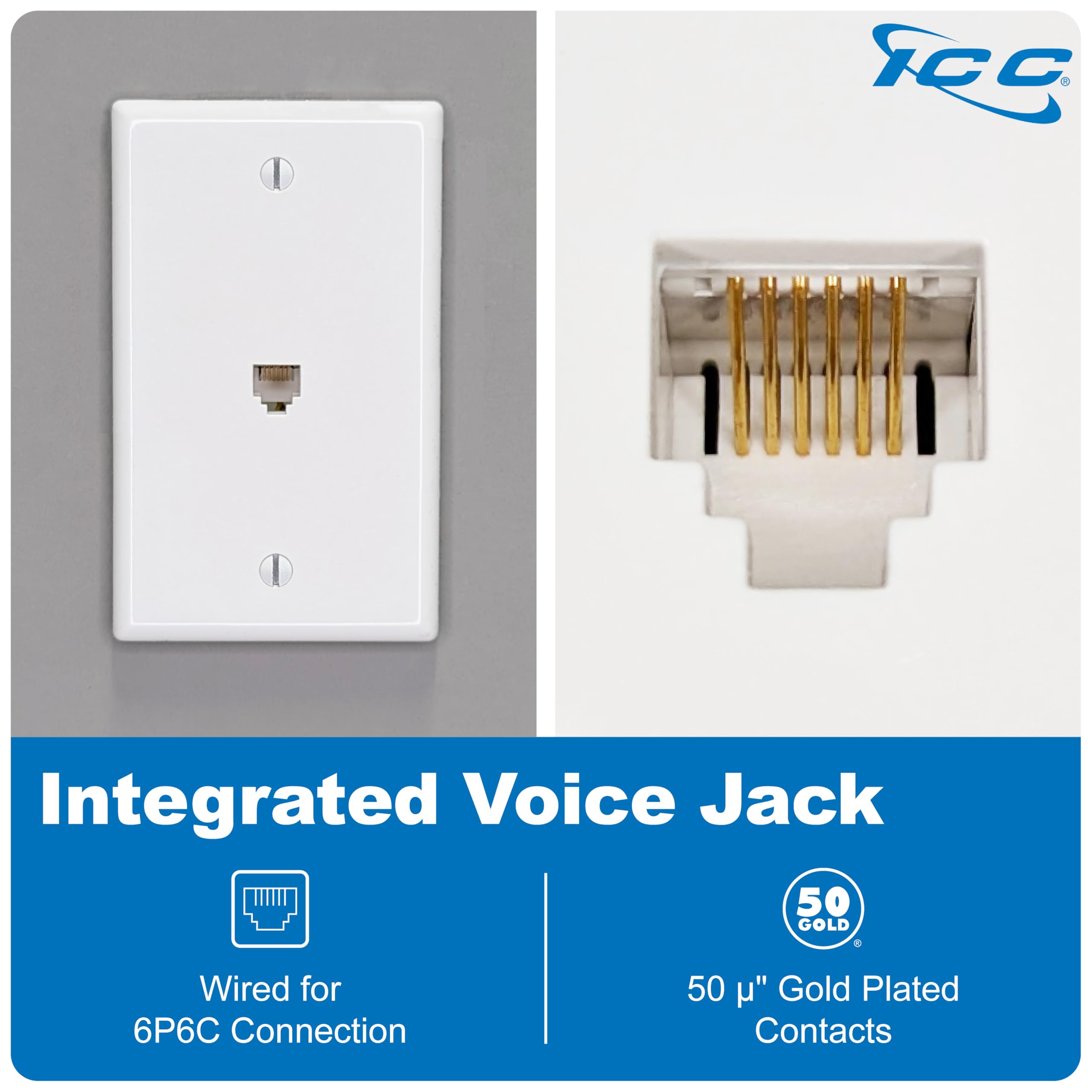

  • Provides traditional screw down terminals for voice connectivity on the rear.
  • Rugged and durable construction.

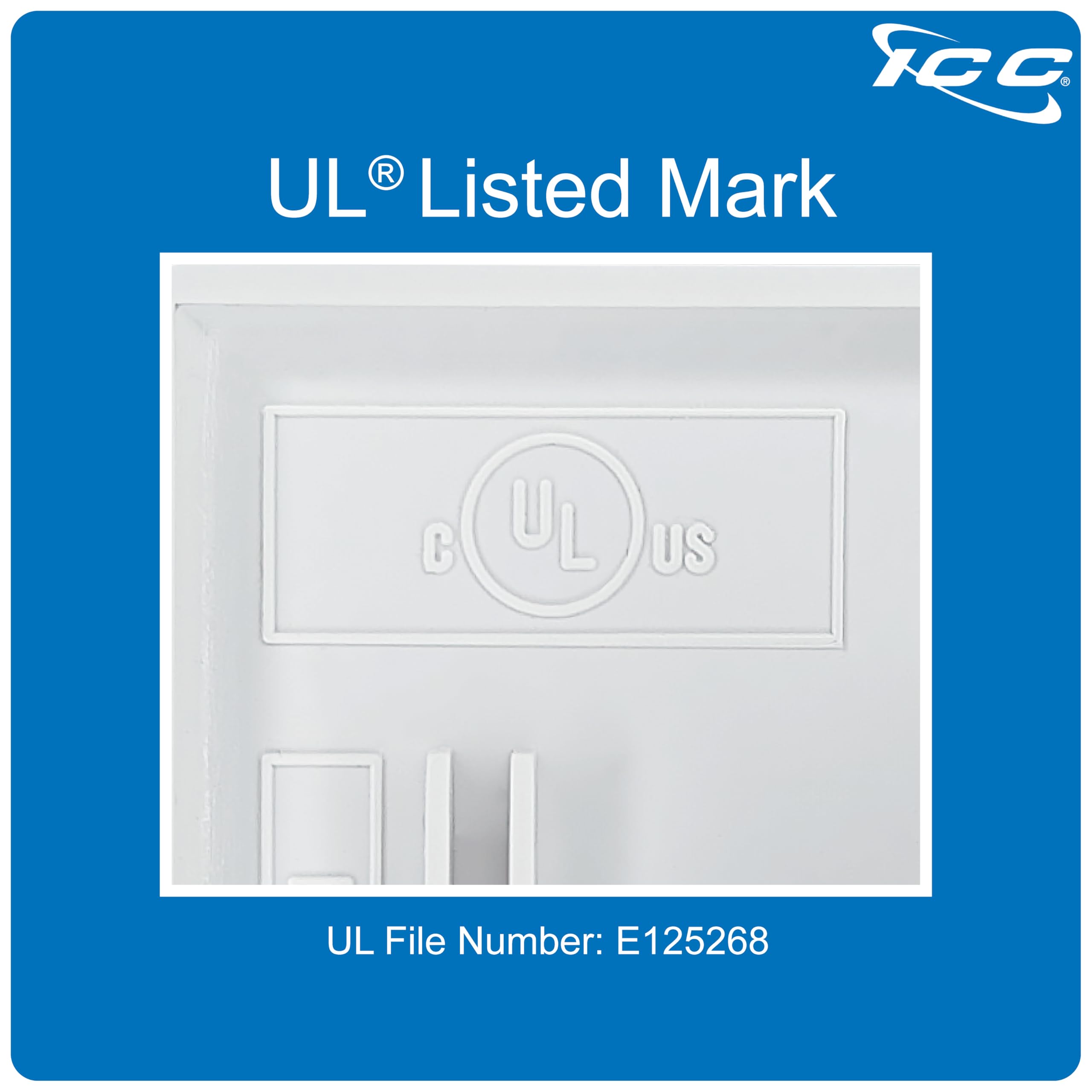

  • ANSI/TIA-568-C and UL 1863 compliant

Specifications

Faceplate:

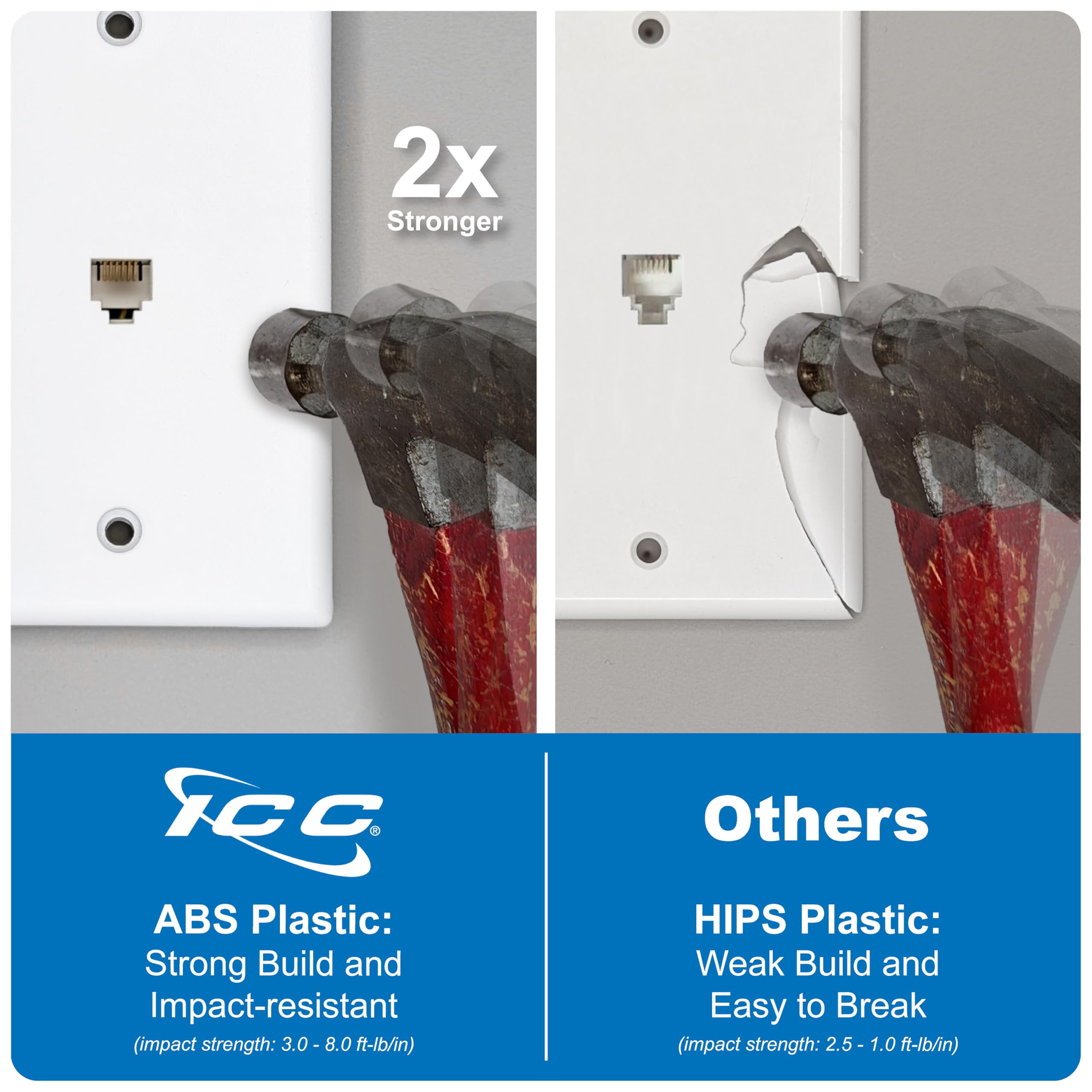

Material: ABS, UL 94V-0
Wiring Block:
Housing: ABS, UL 94V-0
Spring Wire Contacts: Phosphor Bronze Gold plating Over 100 microinch nickel
Gold Plating: 1.27 micron/50 micro inch min
Wire lead: 26 AWG stranded wire
Termination Screws: 6-20 x .415 flat pan head 15 lbs/inch min torque
Electrical:
Current rating: 1.5 amp max
Dielectric withstanding voltage: 1000 volts RMS, 60 Hz
Contact Resistance: 20 mill ohms
Insulation Resistance: 10 mega ohms
Performance: return loss of -20 dB max
Frequency Range DC: -1.5 GHz
Mechanical:
Force: 500 grams of 6 wire lead
Retention: 17 lbs between jack and plug
Crimp Tensile: 4.0-500 lbs
Color:
Color XX: IV-Ivory, WH-White
