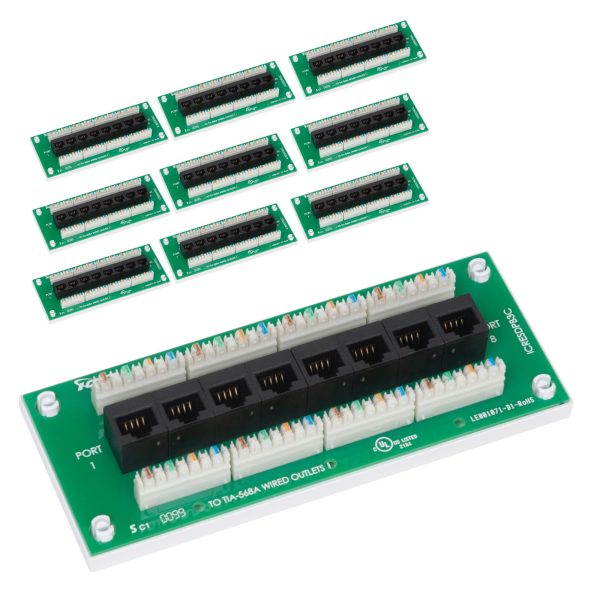

8-Port CAT 6 Data Module with Universal Mounting Base in 10-Pack
|Module Type: 8-Port CAT6 Data Module – Universal Mount|
In stockUPC: 633758094917
Country of Origin (subject to change): Taiwan
ICC’s CAT6 data module with universal mount is designed to provide broadband internet access for up to eight (8) computers in a residence. The module is integrated with a non-bridged CAT6 data board with eight (8) standard 4-pair 110 IDC connectors, providing high-performance connectivity that’s tested to exceed TIA-568-A industry standards. The module has a PCB board design without housing, offering a cost-effective solution with the same performance. Use with CAT5e UTP solid cable.
- Designed to support up to 8 Category 6 data lines.
- Wiring in accordance with TIA-568A standard for residential use.
- Exceeds ANSI/TIA-568-B.2 standards for residential use.
- Universal mount with attached self-adhesive hook and loop strips for easy mounting on flat surfaces.
- Installation instructions are included.
- UL Listed
- 8-Port CAT6 Data Module:
- PCB: Glass Epoxy FR-4 copper clad, t=1.20mm
- 110 Block:
- Housing: PC UL 94V-0
- IDC: Phosphorus Bronze, Tin Plated
- RJ45 Jack/Socket:
- Housing: PBT + 15% Fiber Glass
- Contact: Phosphorous Bronze, 50µ Gold Plated
- Wiring in accordance with TIA-568A standard
- CAT6 Rated
- Material: ABS
- Surface Finish: White Powder Coat
